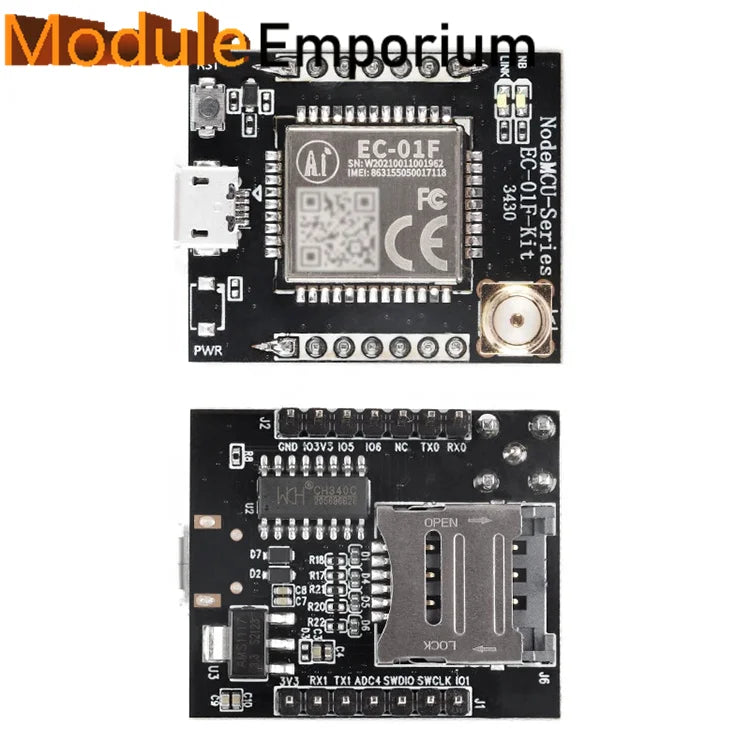

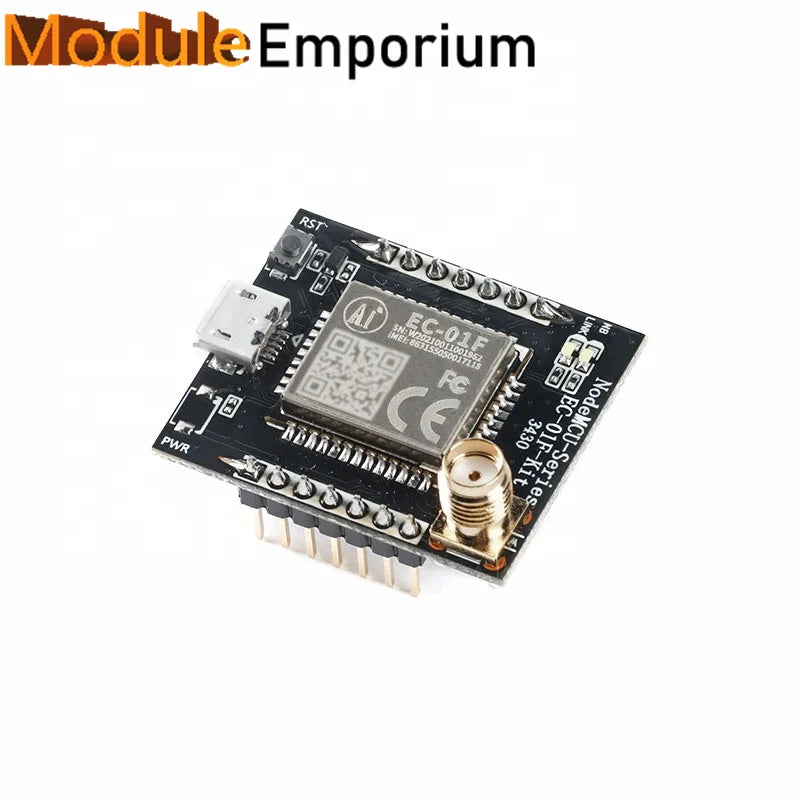

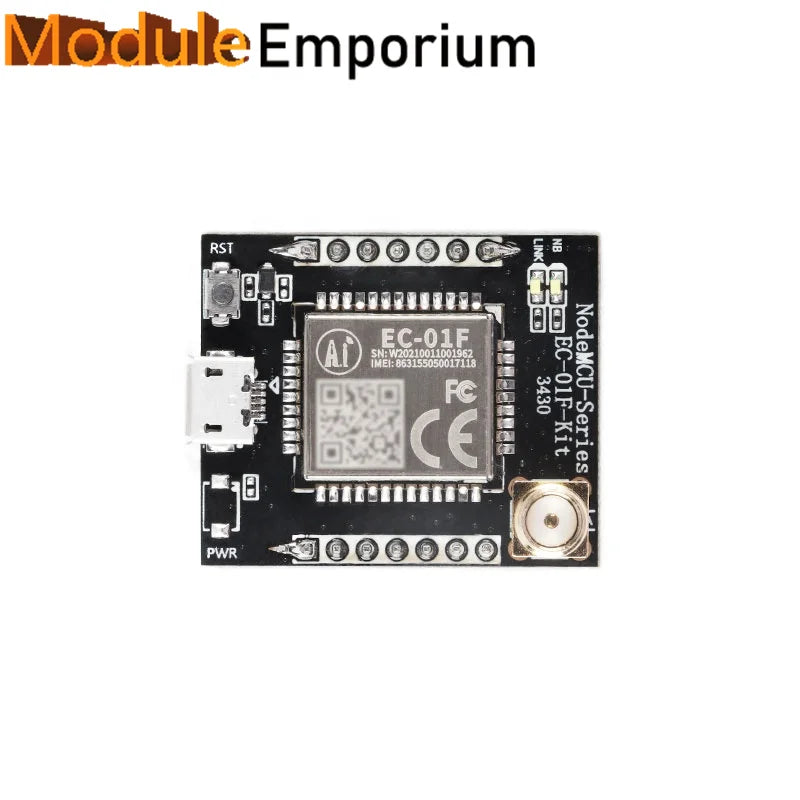

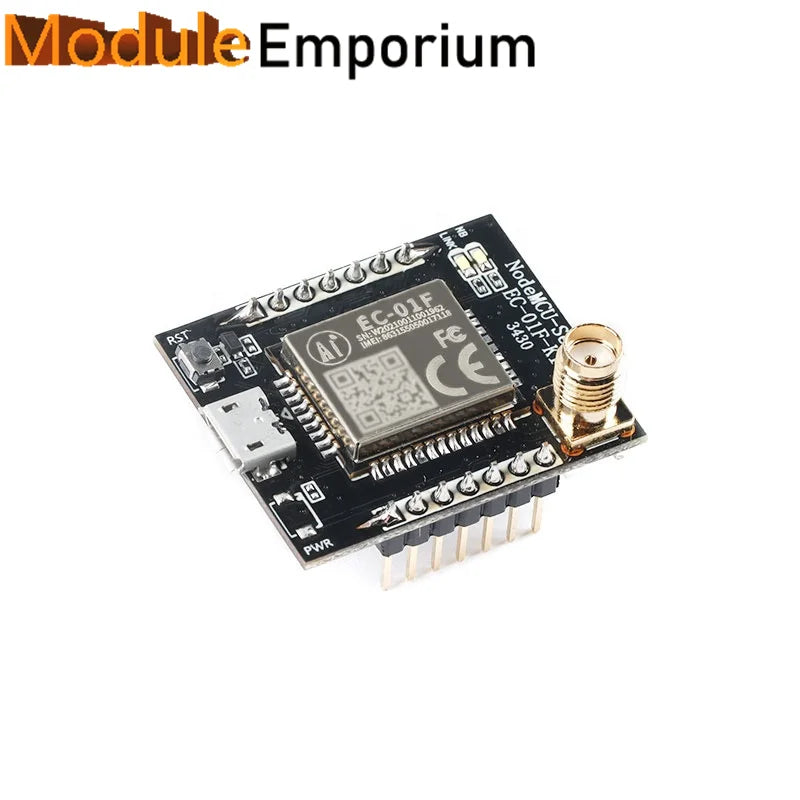

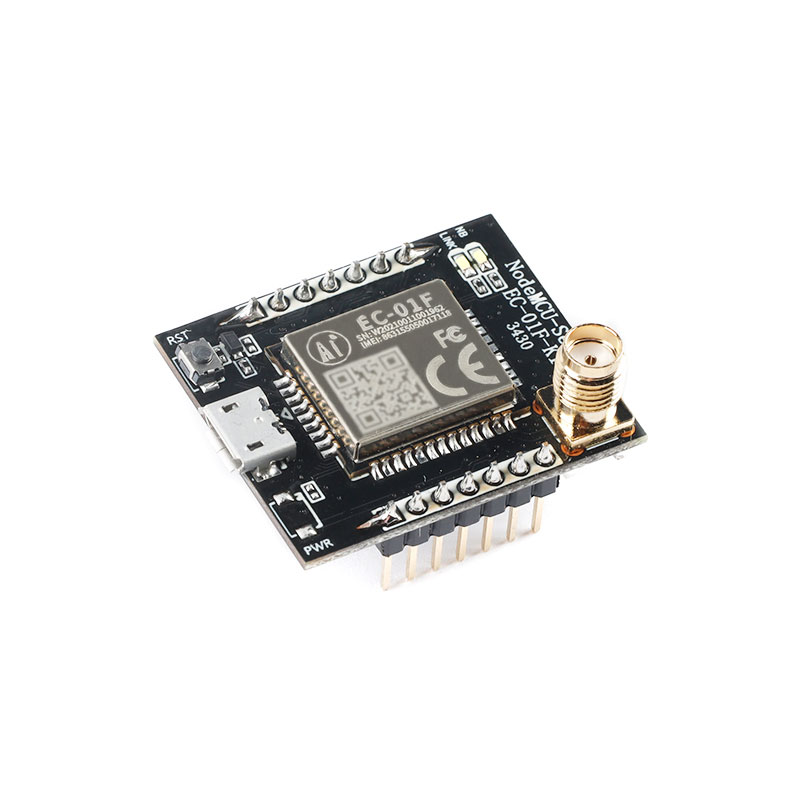

5G NB-IoT EC-01F-Kit EC616S Wireless Communication Development Board Kit
5G NB-IoT EC-01F-Kit EC616S Wireless Communication Development Board Kit
Regular price
£9.40 GBP
Regular price
Sale price
£9.40 GBP
Unit price
per
Taxes included.
Couldn't load pickup availability
SPECIFICATIONS
Application: smart home
Brand Name: NoEnName_Null
Chipset: EC616S
Condition: New
Hign-concerned Chemical: None
Model Number: 83735
Origin: Mainland China
Place of Origin: Guangdong,China
Supplier Type: original and brand new
Type: Module,development board
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-2{margin-bottom:0}#detail_decorate_root .magic-3{position:relative;width:100%}#detail_decorate_root .magic-4{width:750px}#detail_decorate_root .magic-5{overflow:hidden;width:750px;height:1079px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-6{margin-top:0;margin-left:0;width:750px;height:1079px}#detail_decorate_root .magic-7{overflow:hidden;width:750px;height:370.34161490683226px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-8{margin-top:0;margin-left:0;width:750px;height:370.34161490683226px}#detail_decorate_root .magic-9{vertical-align:top}#detail_decorate_root .magic-10{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-11{font-size:22px}#detail_decorate_root .magic-12{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-13{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-14{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-15{font-size:18px}#detail_decorate_root .magic-16{overflow:hidden;width:750px;height:812.0437956204379px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-17{margin-top:0;margin-left:0;width:749.9999999999999px;height:812.0437956204379px}#detail_decorate_root .magic-18{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-19{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-20{overflow:hidden;width:750px;height:651.8932874354562px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-21{margin-top:0;margin-left:0;width:750px;height:651.8932874354562px}#detail_decorate_root .magic-22{overflow:hidden;width:750px;height:1892.9712460063897px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-23{margin-top:0;margin-left:0;width:750px;height:1892.9712460063897px}#detail_decorate_root .magic-24{overflow:hidden;width:750px;height:891.1353032659409px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-25{margin-top:0;margin-left:0;width:750px;height:891.1353032659409px}#detail_decorate_root .magic-26{width:750px;border-collapse:collapse}#detail_decorate_root .magic-27{min-height:28px;padding:5px 10px;width:259px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-28{min-height:28px;padding:5px 10px;width:442px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-29{min-height:28px;padding:5px 10px;width:259.208px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-30{min-height:28px;padding:5px 10px;width:442.201px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-31{min-height:28px;padding:5px 10px;width:259.312px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-32{min-height:28px;padding:5px 10px;width:442.306px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-33{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-34{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-35{margin-top:0;margin-left:0;width:247px;height:164px}#detail_decorate_root .magic-36{overflow:hidden;width:247.33333333333334px;height:247.33333333333337px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-37{font-size:16px}#detail_decorate_root .magic-38{overflow:hidden;width:750px;height:737.0892018779343px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-39{margin-top:0;margin-left:0;width:750px;height:737.0892018779343px}#detail_decorate_root .magic-40{overflow:hidden;width:750px;height:628.6443148688047px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-41{margin-top:0;margin-left:0;width:750px;height:628.6443148688047px}#detail_decorate_root .magic-42{overflow:hidden;width:750px;height:489.3048128342246px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-43{margin-top:0;margin-left:0;width:750px;height:489.3048128342246px}#detail_decorate_root .magic-44{overflow:hidden;width:750px;height:800px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-45{margin-top:0;margin-left:0;width:750px;height:800px}
Product Description
Product overview

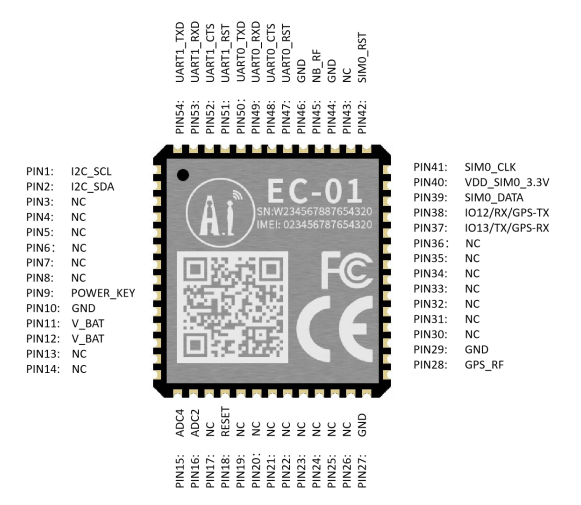

EC-01 is a NB module developed by Ai-Thinker. The main chip scheme adopted by the NB part is EC616S. The chip has an ultra-highly integrated NB-IoT SoC,supports ultra-low power consumption,and fully supports the 3GPP Rel14 NB-IoT standard. It is an ultra-high cost- effective NB-IoT chip.
It has the following characteristics：
1. Integrated RF transceiver,PA,RF filter,antenna switch and power management.
2. Excellent communication performance and stability in various wireless
environments.
3. Excellent power consumption performance in various modes (PSM,DRX,eDRX,connected state).
4. Unique MCU mode,providing lower working current and shorter wake-up time
It has the following characteristics：
1. Integrated RF transceiver,PA,RF filter,antenna switch and power management.
2. Excellent communication performance and stability in various wireless
environments.
3. Excellent power consumption performance in various modes (PSM,DRX,eDRX,connected state).
4. Unique MCU mode,providing lower working current and shorter wake-up time

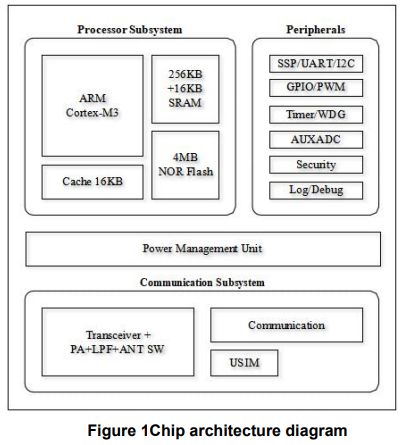

Features
CPU：
Cortex-M3,support MPU
Configurable CPU frequency,up to 204MHz
8-channel DMA
Memory：
4MB on-chip NOR flash
272KB on-wafer SRAM,divided into 256KB and 16KB
16KB instruction cache
System：
Flexible configuration support 1.8/2.8/3.3V IO
Clock source: 26MHz TCXO or DCXO,32.768KHz crystal oscillator
1 external wake-up source (interrupt)
Unique MCU mode,in this mode,the internal RC oscillator is used as the
clock,and the power consumption is lower
LOG port,UNILOG
Debug port,SWD
Peripherals：
16 GPIO
3 UART,2 SSP,2 I2C
6 PWM,6 Timers,6 GPIO counter,1 WDG
32KHz RTC timer
USIM,support Esim
LPUART
4-channel 12-bit AUXADC
Temperature Sensor
Battery voltage monitoring
Low power consumption：
Unique low-power architecture,4-level sleep mode
PSM: 800nA
DRX (2.56s): typical value 110uA
RX: typical value10mA
TX: typical value24mA
Communication：
Totally support 3GPP R14 NB-IoT
Category NB2,2-HARQ
Multi-tone NPUSCH
Anchor and non-anchor carrier
In-band same/different PCI,guardband,standalone
Multi-carrier paging,NPRACH
Positioning: OTDOA & ECID
ROHC,RAI,multiple-DRB,RRC connection re-establish
SC-PTM (need SW upgrade)
RF：
Support frequency band: 3,5,8
Chip integrated PA,support APT function
Chip integrated RF transceiver filter and antenna switch
Power level 3
Safety：
Hardware encryption and decryption module(AES,SHA)
Secure boot
flash encryption
True random number generator
Application：
Support open-CPU
The software complies with the CMSIS architecture
Support mainstream cloud services
IPv4,IPv6 and non-IP
UDP,TCP
DTLS,TLS,SSL
MQTT,CoAP,HTTP(S)
LWM2M
Support FOTA
Voltage range：
3.3V to 4.5V
Cortex-M3,support MPU
Configurable CPU frequency,up to 204MHz
8-channel DMA
Memory：
4MB on-chip NOR flash
272KB on-wafer SRAM,divided into 256KB and 16KB
16KB instruction cache
System：
Flexible configuration support 1.8/2.8/3.3V IO
Clock source: 26MHz TCXO or DCXO,32.768KHz crystal oscillator
1 external wake-up source (interrupt)
Unique MCU mode,in this mode,the internal RC oscillator is used as the
clock,and the power consumption is lower
LOG port,UNILOG
Debug port,SWD
Peripherals：
16 GPIO
3 UART,2 SSP,2 I2C
6 PWM,6 Timers,6 GPIO counter,1 WDG
32KHz RTC timer
USIM,support Esim
LPUART
4-channel 12-bit AUXADC
Temperature Sensor
Battery voltage monitoring
Low power consumption：
Unique low-power architecture,4-level sleep mode
PSM: 800nA
DRX (2.56s): typical value 110uA
RX: typical value10mA
TX: typical value24mA
Communication：
Totally support 3GPP R14 NB-IoT
Category NB2,2-HARQ
Multi-tone NPUSCH
Anchor and non-anchor carrier
In-band same/different PCI,guardband,standalone
Multi-carrier paging,NPRACH
Positioning: OTDOA & ECID
ROHC,RAI,multiple-DRB,RRC connection re-establish
SC-PTM (need SW upgrade)
RF：
Support frequency band: 3,5,8
Chip integrated PA,support APT function
Chip integrated RF transceiver filter and antenna switch
Power level 3
Safety：
Hardware encryption and decryption module(AES,SHA)
Secure boot
flash encryption
True random number generator
Application：
Support open-CPU
The software complies with the CMSIS architecture
Support mainstream cloud services
IPv4,IPv6 and non-IP
UDP,TCP
DTLS,TLS,SSL
MQTT,CoAP,HTTP(S)
LWM2M
Support FOTA
Voltage range：
3.3V to 4.5V

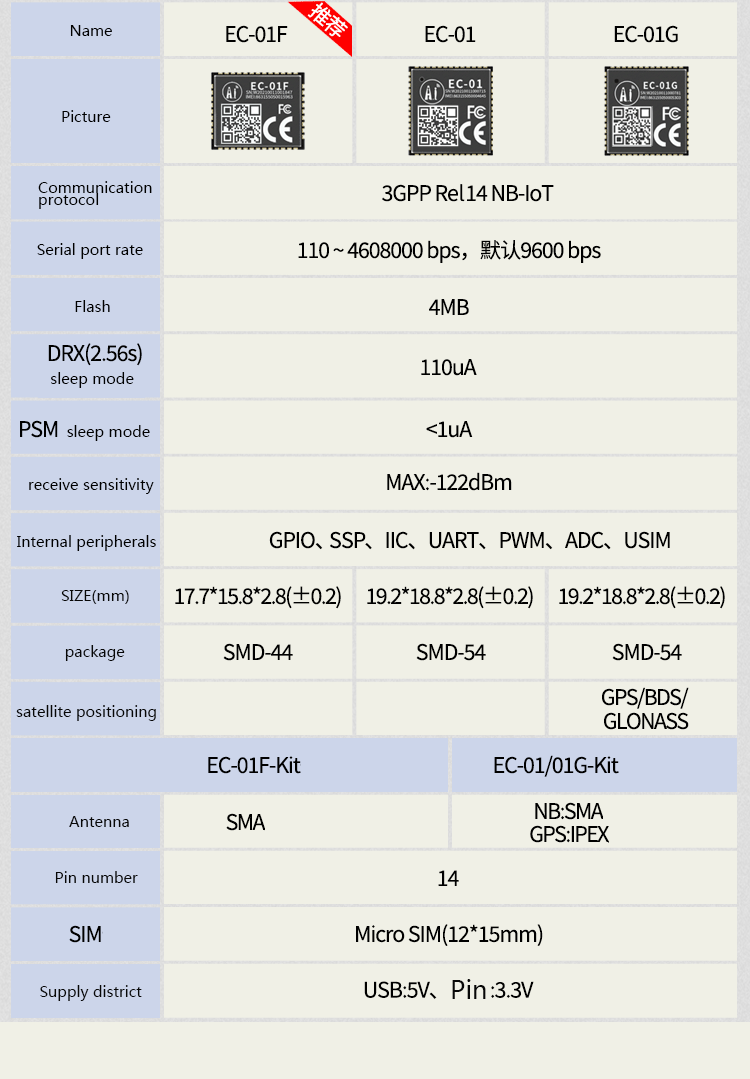

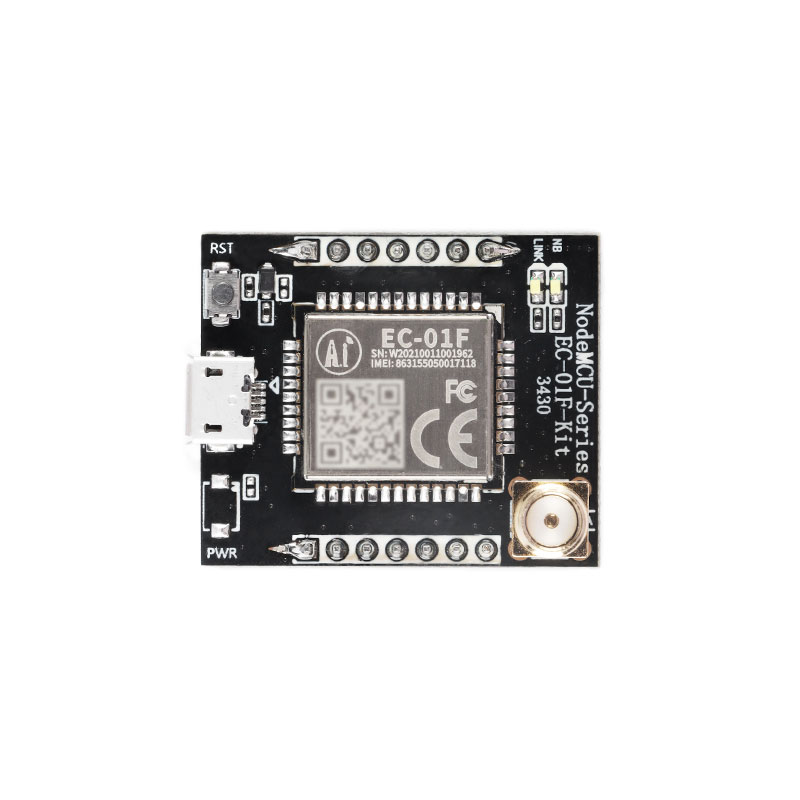

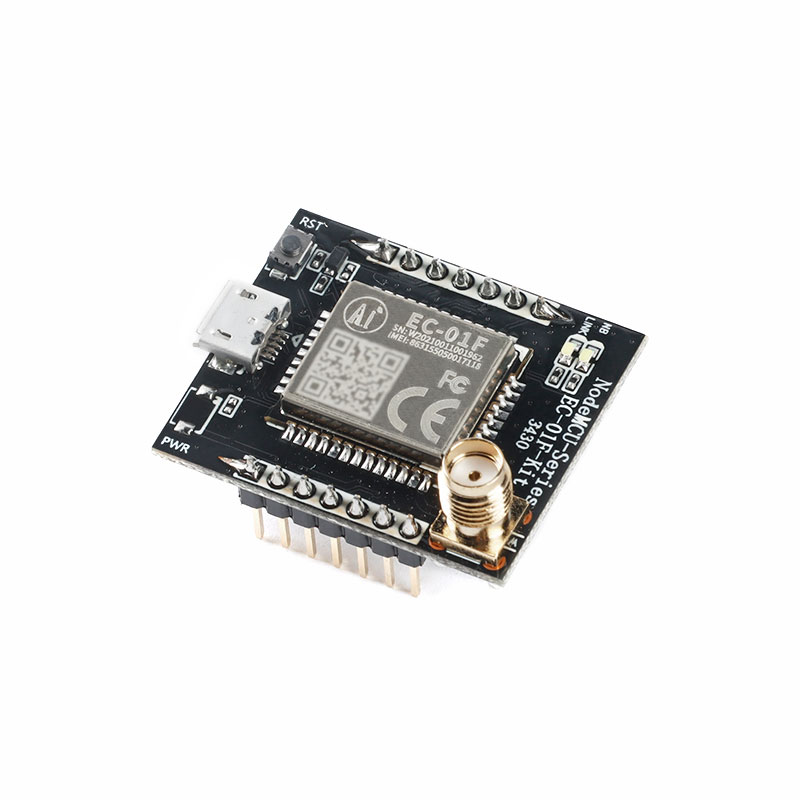

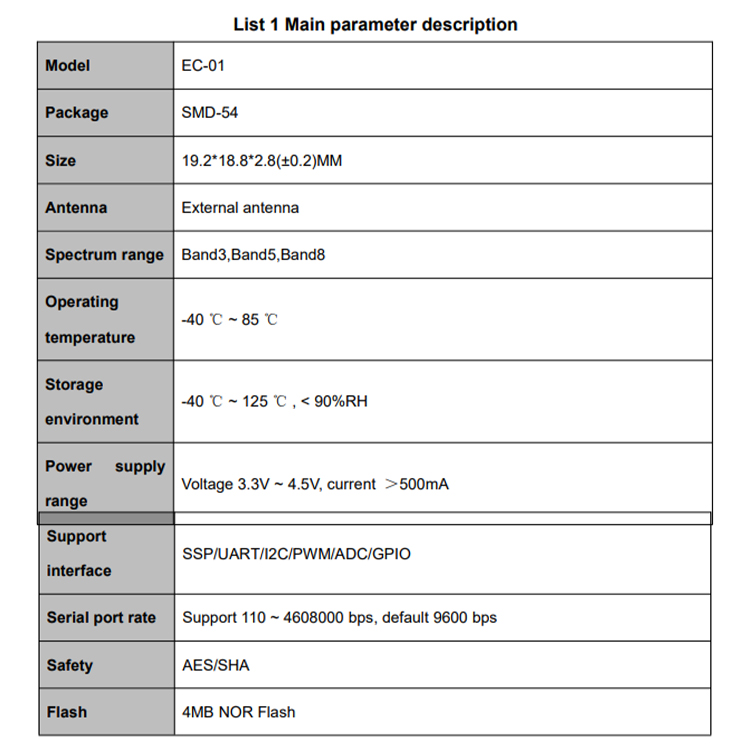

Specification
Development board model |
EC-01F-Kit |
Package |
DIP-14（2.54 Spacing standard row needle) |

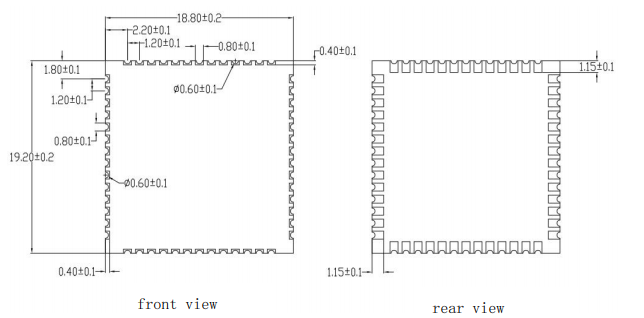

Size |

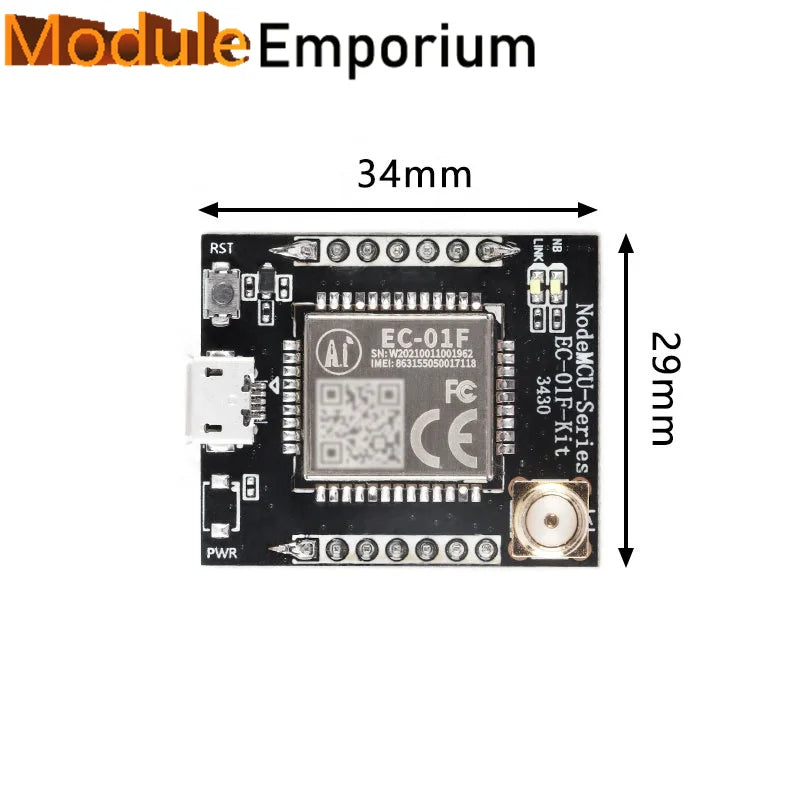

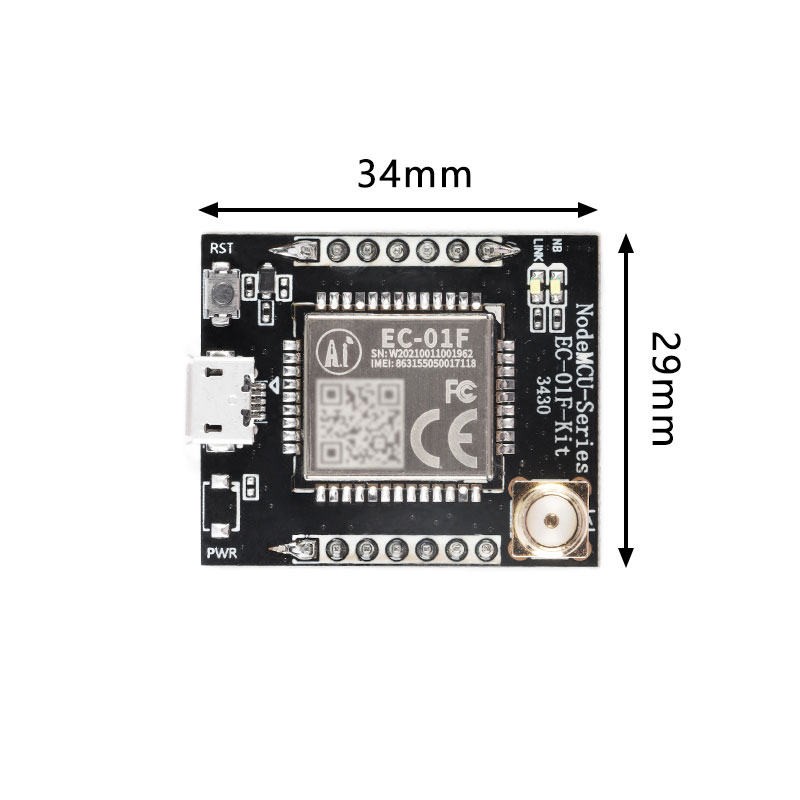

33.9*28.4*13(±0.2)mm |
Antenna |
External SMA antenna |
Spectral Range |
-Band 3/Band 5/Band 8 |
Storage environment |
-40 ℃ ~ 125 ℃,< 90%RH |
Power supply range |
Voltage 5V current ≥ 500mA |

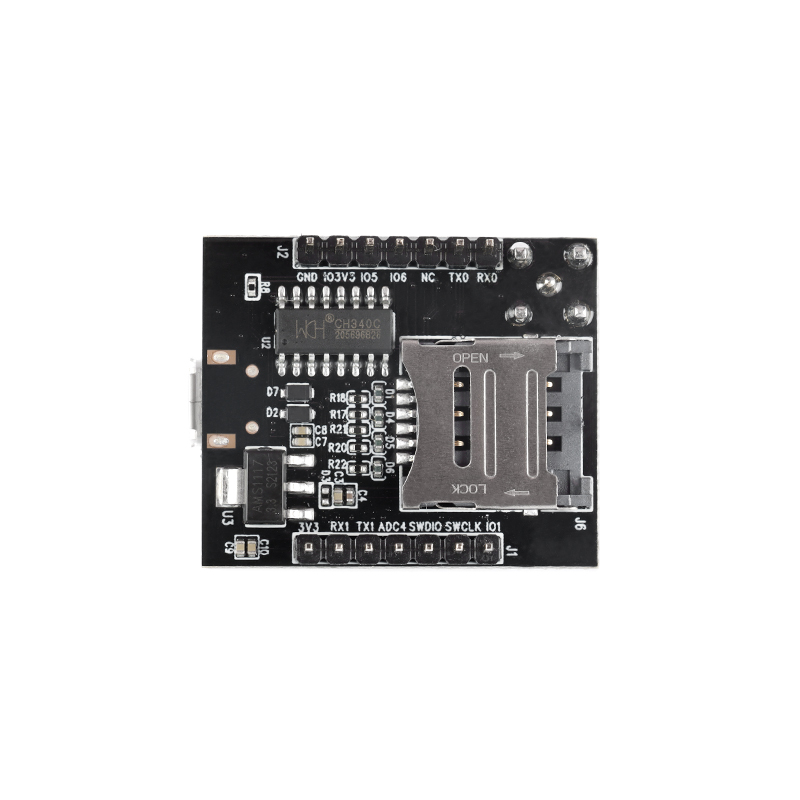

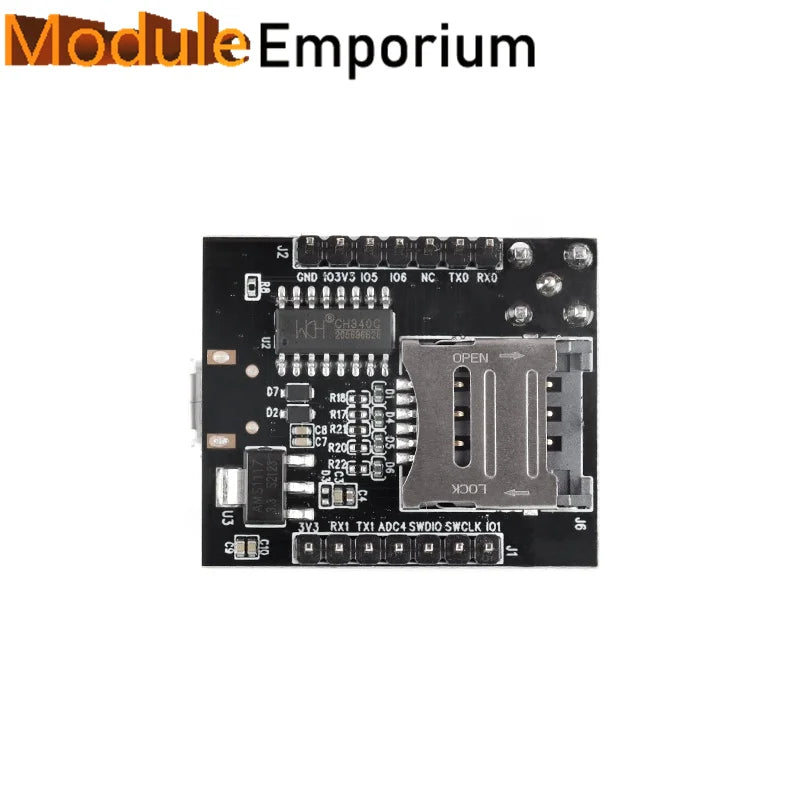

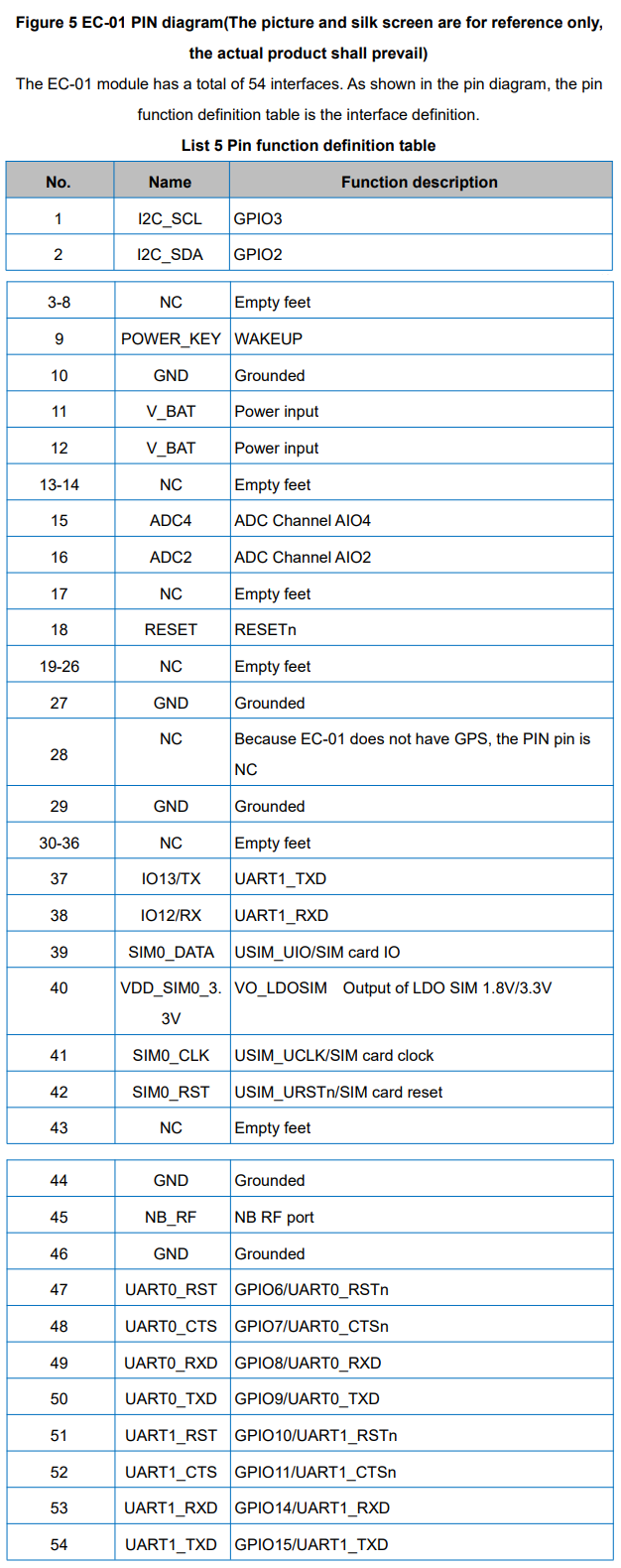

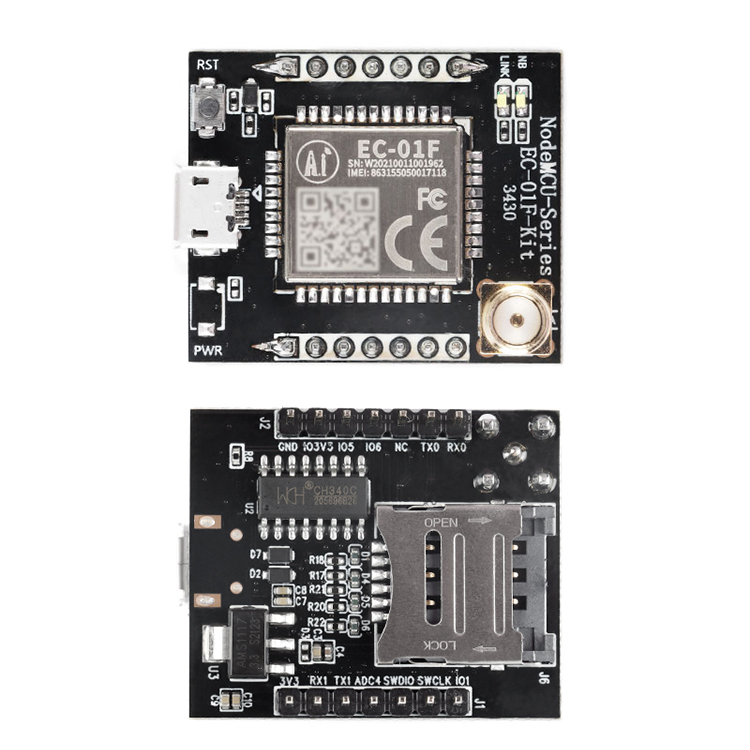

Support Interface |
UART/I2C/PWM/ADC/GPIO |
Power supply |
5V Micro USB or pin 3.3V |
Flash |
4MB NOR Flash |
