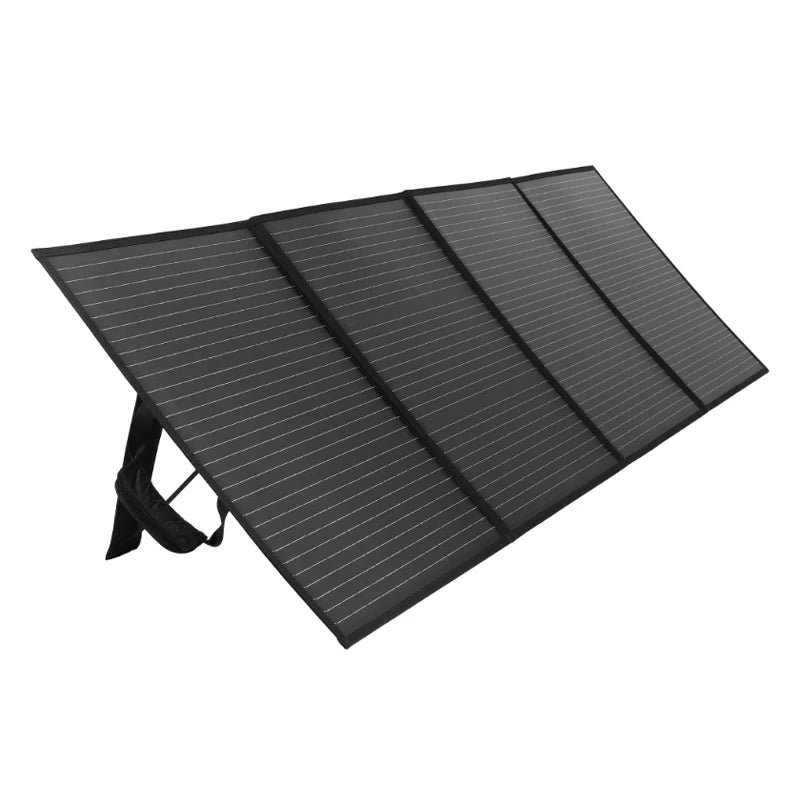

Features:

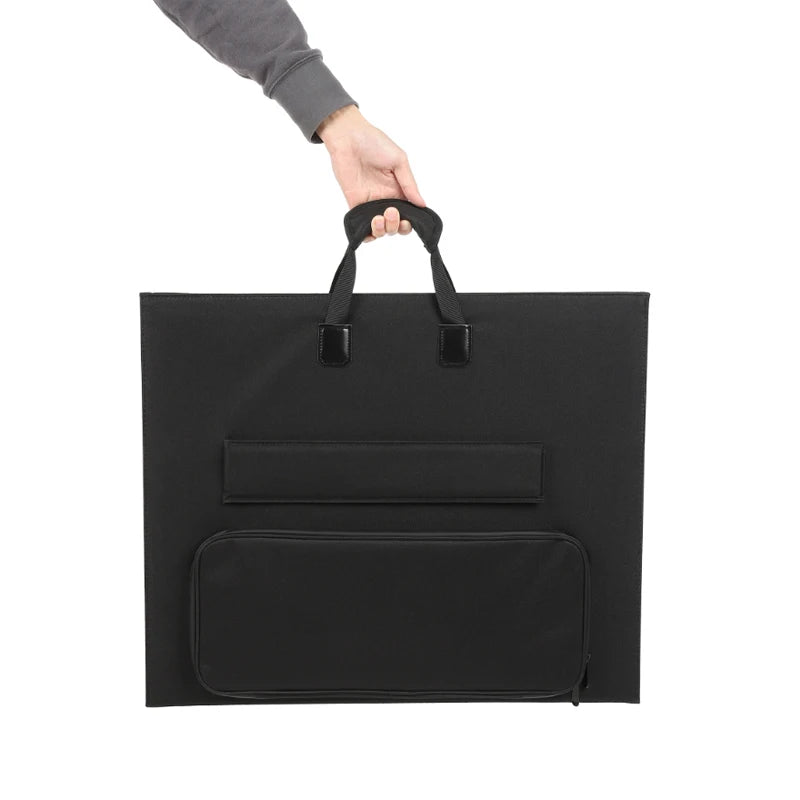

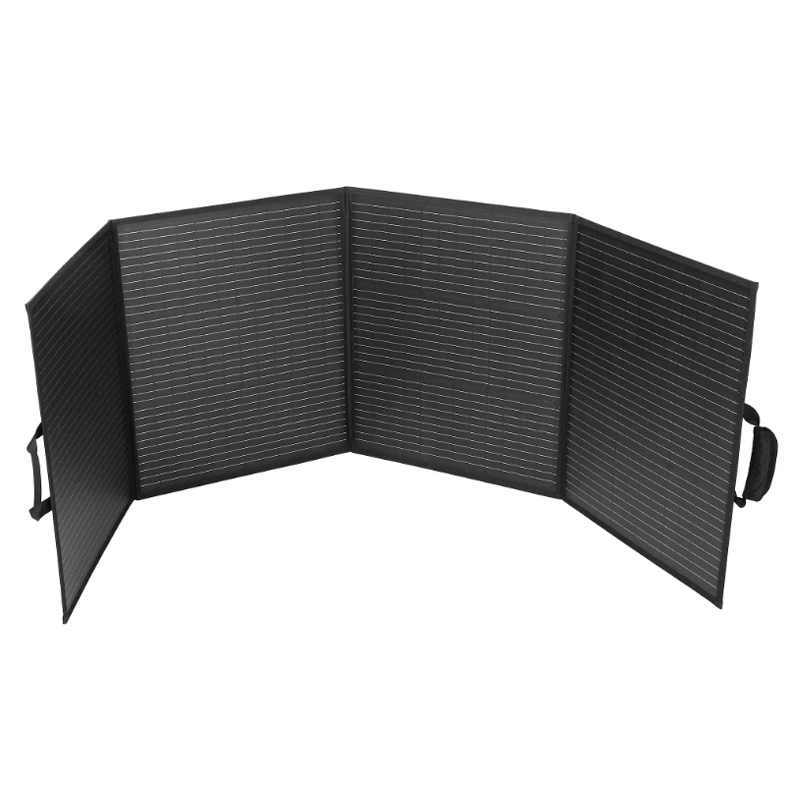

* The folding solar panel is lightweight, compact and reasonable in appearance, easy to open and close, and comes standard with a 25MM webbing handle, suitable for outdoor carrying.

* The solar panel adopts a glass fiber board substrate + PET protective film lamination packaging process, and the product life is up to 10 years.

* It is produced using high-efficiency Class A monocrystalline silicon cells, and the photoelectric efficiency of the cells is more than 22%.

* Waterproof grade IP65, strong waterproof and dirt-resistant performance, easy to clean after dirt.

* The folding solar panel is suitable for charging energy storage batteries with a rated voltage of DC12-40V (a charging protection controller needs to be connected separately)

* It has a certain resistance to drop and impact (the drop height that can be tolerated is within 1 meter, and the front of the solar panel cannot hit sharp objects to prevent damage to the internal solar cells).

* It uses waterproof fabrics and processes, and it will not affect normal use in case of rain. (Note that it cannot be exposed to conductive/corrosive liquids such as seawater, which may cause internal short circuits and cause abnormal power generation. If there is contact, rinse with clean water and dry it.)



Specification:

Name: Folding solar panel

Material: Monocrystalline silicon + PET

0pen circuit voltage Voc(V): 48.0V

Max.power voltage Vmp(V): 40.0V

Max.power current lmp(A): 5.0A

Short circuit current lsc(A): 6. 0A

Solar cells Efficiency: 22.0%

Rated operating temperature: 48±2℃

Operating temperature range: -40℃- +85℃

Waterproof grade: IP65

Irradiance: 1000W/m2

Temperature: 25℃, AM: 1.5

Folding size: 596*540*58mm

Deployment size: 2163*596*28mm

Color: Gray + Black



Packing included:

1 * Folding Solar Panel



Note:

1. Due to manual measurements and slight color variations, please allow 1-3 cm (0.4-1.18 inches) difference to suit different display settings.

2. Due to the light and screen difference, the item's color may be slightly different from the pictures. Please understand.
