SPECIFICATIONS

Brand Name: HORACO

Certification: CE,FCC,RoHS

Chip Scheme: RTL9302D+RTL8224

Communication Mode: Full-Duplex & Half-Duplex

Function: VLAN Support

Hign-concerned Chemical: None

Industry standard: EMS: EN61000-4-2 (ESD), EN61000-4-5(Surge)

MAC Address: 16K

MTBF: 100000 Hours

Model Number: ZX-SWTG1216AS

Network Medium: 10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m), 100Base-TX: Cat5 or above UTP/STP(≤100m), 1000Base-TX: Cat5 or above UTP/STP(≤100m), 2.5GBase-T: Cat5 or above UTP/STP(≤100m), 5GBase-T: Cat6 or above UTP/STP(≤100m), 10GBase-T: Cat6 or above UTP/STP(≤100m)

Network protocol: IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control)

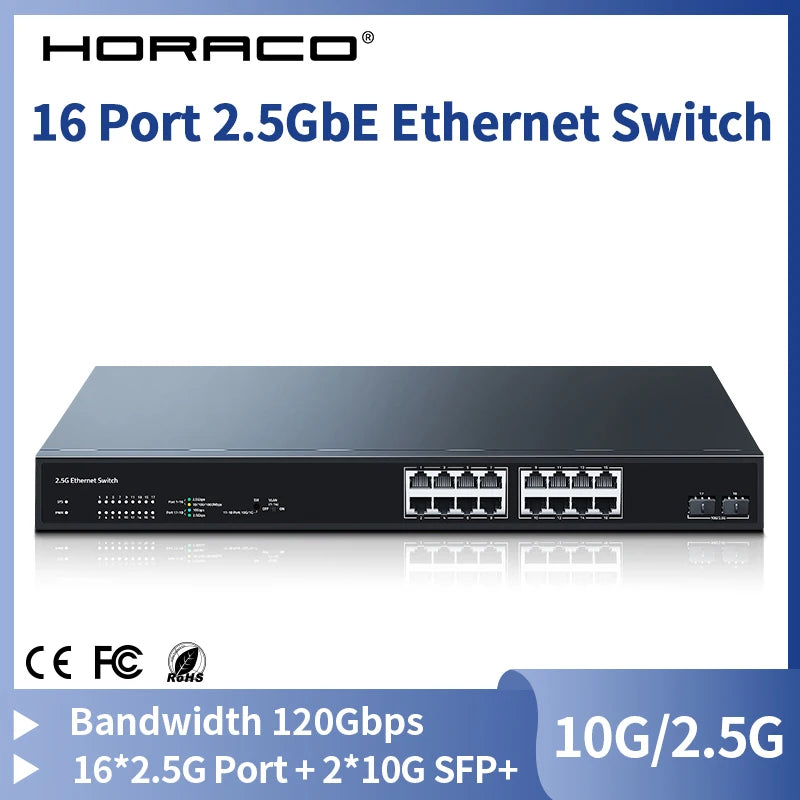

Number of Interfaces: 16*2.5G RJ45 Port, 2*10G SFP+ Port

Origin: Mainland China

Package: Yes

Packet forwarding rate: 89.28Mpps

Packing list: 1 switch, 1 manual, 1 certificate of conformity, 1 power cord

Plug Type: EU plug/US plug/UK plug/AU plug

Power comsumption: Total Power: ≤36W

Power voltage: AC 100-240V, 12V 4A

Switch Capacity: 120Gbps

Switch Type: Ethernet

Transmission Rate: 2000 Mbps

Working environment: Working Temperature: -10-50°C; Storage Temperature: -40-70°C; Working Humidity: 10%-90%, non-condensing; Storage Temperature: 5%-95%, non-condensing;
